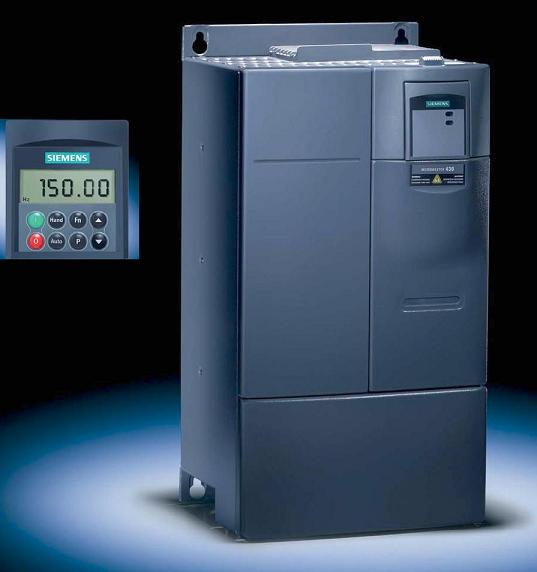

MICROMASTER 430
The Specialist for Pumps and Fans
Every task performed by a drive system involves its own specific requirements. There is therefore a demand for inverter solutions that can be easily and flexibly adapted to cope with the broadest variety of challenges. It is exactly this flexibility which characterizes our modular MICROMASTER 430. Specially for use with pumps and fans in industry, it performs a wide variety of tasks in similar applications as well. Compared to the MICROMASTER 420, it features greater power efficiency and has more inputs and outputs as well as an optimized operator panel with switch-over between manual and automatic modes of operation.
Typical Uses
Specially suitable for pumps and fans.
MICROMASTER 430 – Technical Data
| Voltage and power ranges |
380-480 V, ± 10%, 3 AC, 7.5 to 250 kW (10 to 300 HP) |
| Operating temperature |
-10 °C to +40 °C |
| Process control |
Internal PID controller |
| Types of control |
FCC (Flux Current Control), multipoint characteristic (parameterizable V/f characteristic), V/f characteristic |
| Inputs |
6 digital inputs, 2 analog inputs, 1 PTC/KTY input |
| Outputs |
2 analog outputs, 3 relay outputs |
| Link-up to automation |
The ideal partner for your automation needs, from connection to SIMATIC S7-200 to integration in TIA with SIMATIC and SIMOTION. |
MICROMASTER 430 is economically efficient in terms of both investment and operation.
